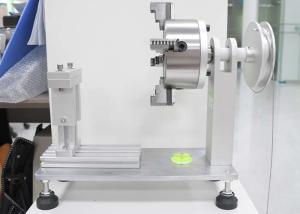

IEC 60884-1 Torque Test Device for Plug Socket Cord Anchorage Cable Sheath Wear Test
Product Description
This Cord Anchorage Torque Testing Device is designed for testing the mechanical durability and wear resistance of plug and socket cable connections, especially focusing on the strain relief area. It fully complies with multiple international standards, including IEC 60884-1:2006 clause 23.2, IEC 60335-1 clause 25.15, and VDE 0620 table 18.
The equipment simulates real-world stress conditions by applying calibrated torque through a system of weights and a force arm, ensuring reliable verification of cord anchorage performance and protection against twisting or pulling forces.
Features & Construction
Utilizes a disc torque mechanism with multiple calibrated weights to simulate torque from 0.1 to 0.425 N·m.
Made of a compact and durable design with dimensions of 300×200×300mm (W×D×H).
Built-in adjustable fixture (60mm horizontal & vertical opening) for easy sample setup.
Clear operation steps with adjustable test cycles (up to 9999 times) and a default setting of 100 cycles.
Ideal for plugs, mobile sockets, fixed socket outlets, and cord connector assemblies.
Technical Specifications
Torque Disc Diameter: 100mm
Torque Range: 0.1, 0.15, 0.25, 0.35, 0.425 N·m
Load Weights: 2N, 3N, 5N, 7N, 8.5N (1 each included)
Test Cycle Setting: 0–9999 times (adjustable)
Operating Environment: Temperature 0–40℃ | Humidity 30%–90%
Device Weight: Approx. 10kg
Fixture Opening: 60mm horizontal & vertical
Included Accessories
Set of standard test weights (2N to 8.5N)
Full toolkit and sample fixing screws
Integrated positioning screws for fixture adjustment
Typical Applications
Conformance testing for plug and socket manufacturers
Electrical safety compliance labs
R&D departments focused on electrical durability testing
Usage Notes
Before performing the torque test, ensure the cord retention test has been completed as per IEC requirements. Secure horizontal alignment of the equipment using leveling feet for accurate results.
